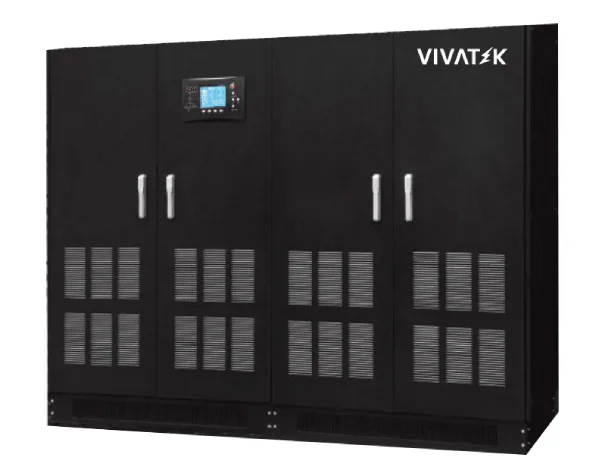

TURBO 80-500KVA LF TRANSFORMER BASED

• Online double-conversion with DSP control
• IGBT rectifier and high input power factor(> 0.99) High efficiency 93%
• Output power factor 0.9
• Low input distortion: THO< 5% Generator compatible
• Output isolation transformer
• Inverter IGBT technology with high frequency communication High immunity to external disturbances
• Independent control on the three inverter phases
• High instantaneous overload capacity e High MTBF (> 200,000 h)
• Capability of supplying distorted loads, containing output voltage distortion with crest factors Front access makes maintenance and replacement easy, save space
• Intelligent self-diagnosing function, all kinds of failure protection, large capability of history records  storage Low MTTR (< 0.5h)
• Standard emergency power off (EPO)
• Standard RS232 I RS485 / dry contacts communication port Optional SNMP communication port
• Optional N+X redundancy parallel up to 6 units
