3 Phase UPS Systems for Industrial & Commercial Power Protection
Three-phase UPS systems provide reliable backup and power protection for factories, CNC machines, automation systems, data centres and other critical applications. At Anushri Systech, we select the right UPS based on your load, electrical configuration, backup requirement and site conditions, helping ensure stable power and dependable operation when you need it most. Looking for a 3 Phase UPS? Talk to our technical team for the right solution.
Find the Right Power Backup Configuration for Your Application
Every installation has a different electrical requirement.
A factory may need protection for automation and control equipment, while a data environment may require continuous support for servers and network infrastructure. A CNC installation may require a different configuration from a commercial building with IT and communication loads.
Before recommending equipment, we look at:
- What equipment needs protection
- How much power the equipment actually consumes
- Whether the load is single-phase or three-phase
- Required battery runtime
- Existing electrical distribution
- Generator availability
- Available installation space
- Expected future load growth
This helps avoid both undersizing and unnecessary investment in an oversized system.
What Is a Three-Phase UPS?
A three-phase UPS is an uninterruptible power supply designed to operate with three-phase electrical distribution.
Under normal conditions, the system receives power from the utility or another incoming source and supplies the connected load. When the incoming supply fails or moves outside the acceptable operating range, the battery-backed power-conversion system continues supporting the protected equipment.
For demanding applications, online double-conversion technology is commonly considered because the connected load is supplied through the UPS inverter during normal operation as well as during battery operation.
The correct configuration depends on the electrical arrangement of the site and the equipment being protected.
A three-phase incoming supply does not automatically mean that the output must also be three-phase. The input and output configuration should be matched to the actual load.
3P–3P and 3P–1P Configurations
Two common configurations are used for industrial and commercial installations.
Three-Phase Input to Three-Phase Output
- This arrangement accepts three-phase incoming power and provides three-phase output to the protected distribution.
- It can be suitable for larger industrial equipment, three-phase distribution systems and applications where the protected load is distributed across three phases.
Three-Phase Input to Single-Phase Output
- This configuration uses a three-phase input while supplying single-phase output.
- It can be useful where the facility receives three-phase power but the critical equipment operates on single-phase supply.
- The selection should be based on the actual electrical architecture rather than simply choosing the configuration that sounds more suitable.
Online Double-Conversion Technology
For applications where power continuity and power quality are important, online double-conversion architecture can provide a high level of electrical control.
The incoming AC power is converted to DC and then converted back into controlled AC power through the inverter.
This arrangement allows the UPS to regulate the output supplied to the connected load and reduces the effect of many disturbances present on the incoming electrical supply.
Depending on the selected model, the system may provide functions related to:
- Voltage regulation
- Frequency regulation
- Battery operation
- Static bypass
- Overload protection
- Short-circuit protection
- Alarm monitoring
- Communication
Exact performance and available features should always be confirmed against the selected UPS model.
Where Three-Phase UPS Systems Are Used

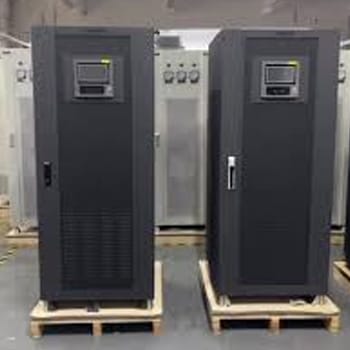

Manufacturing environments often contain a combination of automation equipment, industrial computers, control systems and electronic machinery.
Rather than attempting to back up every electrical load in the facility, the UPS can be designed around the equipment that genuinely requires uninterrupted support.
This can provide a more practical solution for the plant.
CNC equipment may include controllers, drives, servo systems and other sensitive electronics.
An unexpected interruption can interrupt machining operations and affect production schedules.
The electrical characteristics of the machine should be reviewed before selecting the UPS. In some cases, protecting the control and electronic sections may be more appropriate than placing the entire machine load on the backup system.
PLCs, HMIs, controllers, instrumentation and communication equipment are often essential to plant operation.
Maintaining power to these systems can help prevent unexpected restarts and loss of control during short-duration disturbances.
Continuous or semi-continuous processes can depend on instrumentation and control equipment remaining operational.
The UPS design should therefore be based on the process requirement and the equipment that needs protection.

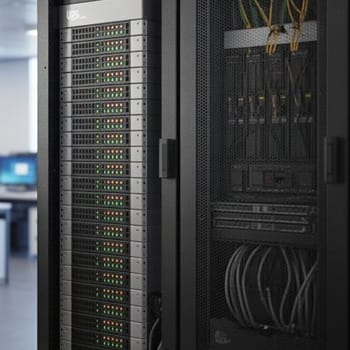

Servers, storage systems, networking equipment and communication infrastructure can be affected by sudden power loss.
A correctly designed UPS installation can maintain power to selected critical systems and provide time for controlled shutdown or transition to another power source.
Certain electronic, monitoring, communication and control systems may require uninterrupted power.
The UPS design must be coordinated with the facility’s electrical distribution, critical-load requirements and applicable project standards.
Three-phase UPS installations can support selected IT, security, communication, automation and other essential electrical systems in commercial facilities.
Where Three-Phase UPS Systems Are Used
Connected and Operating Load
The connected load and normal operating demand are reviewed to establish the practical power requirement.
Power Factor
Loads with different power-factor characteristics can affect the required UPS capacity.
Starting Characteristics
Motors, compressors, drives and other equipment can produce different electrical demands during starting.
Non-Linear Loads
Electronic power supplies, rectifiers and drives can influence the electrical characteristics of the system.
Load Growth
If additional equipment is expected later, the initial design can take future requirements into account.
Operating Margin
A suitable margin can help prevent the system from operating unnecessarily close to its maximum capacity.
Understanding kVA and kW
UPS capacity is commonly expressed in kVA, while many equipment loads are specified in kW.
The basic relationship is:
kW = kVA × Power Factor
However, this equation alone should not be used to determine the final UPS size.
Load behaviour, power factor, operating conditions, starting demand, harmonics and future expansion may all affect the final selection.
If you already have a load schedule, share it with our team. We can use the available information to determine the appropriate configuration.

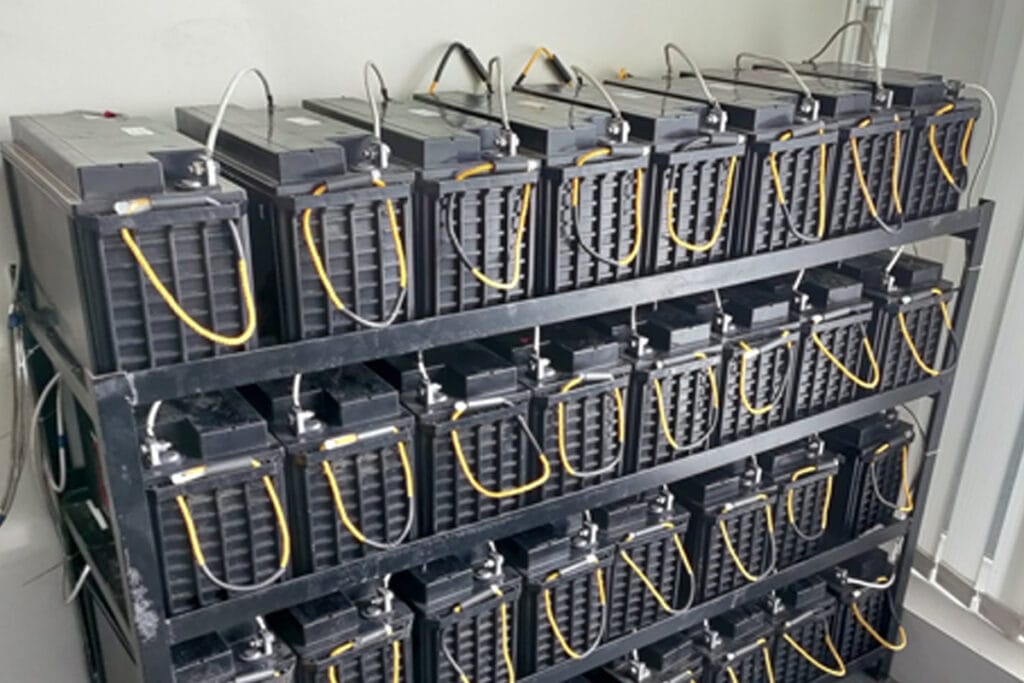

Battery Backup Designed Around Your Runtime Requirement
The UPS provides the power-conversion system, while the battery bank provides the stored energy required during an interruption.
A short backup requirement and a long-duration backup requirement can result in very different battery configurations.
Battery planning takes into consideration:
- Connected load
- Required autonomy
- UPS DC bus voltage
- Battery voltage
- Battery capacity
- Discharge characteristics
- Temperature
- Battery ageing
- Charging capability
- Available installation space
For this reason, the battery should be considered as part of the overall UPS design rather than as an independent purchase.
Need a specific backup time? Tell us the required runtime and load.
Battery Options for UPS Applications
VRLA Battery Systems
- VRLA batteries can be suitable for many conventional UPS installations where a compact and practical battery solution is required.
- The battery configuration should be selected according to the UPS specifications and required discharge performance.
Lithium-Ion Battery Systems
- Lithium-ion batteries may be considered where space, weight, lifecycle, charging behaviour and maintenance requirements are important.
- Compatibility between the battery system and UPS should be verified before selecting the technology.
Industrial Battery Systems
- Certain industrial applications require battery systems designed around demanding operating conditions and specific discharge requirements.
- The selection should consider the application, environment and expected operating profile.
How Long Will the UPS Run During a Power Failure?
There is no single backup time for every installation.
Runtime depends mainly on:
Load + battery capacity + battery configuration + operating conditions
For example, a facility requiring a few minutes of bridging time will normally have a different battery requirement from a facility that needs extended operation during an outage.
If you provide:
UPS capacity + connected load + required backup time
our technical team can determine the appropriate battery arrangement for further evaluation.
UPS and Generator Integration
A UPS provides instant backup power, while a generator supports longer-duration outages. When used together, the UPS keeps critical equipment running while the generator starts and stabilizes.
Proper coordination of the generator capacity, UPS input, frequency, transfer system and battery charging helps ensure reliable power continuity.
Critical Loads and Non-Critical Loads
Not every facility load needs UPS protection. We identify critical equipment such as PLCs, CNC controls, servers and automation systems, while non-critical loads can remain on the normal supply.
This helps reduce UPS capacity, control costs and focus backup power where it matters most.
Power Quality Matters Along With Backup
Power problems are not limited to outages. Voltage fluctuations, frequency variations, electrical noise and harmonics can also affect sensitive equipment.
An online UPS helps provide a stable and controlled power supply to critical loads.
Harmonics and Non-Linear Loads
UPS Efficiency and Operating Cost
UPS efficiency affects electricity consumption and long-term operating costs. We consider efficiency, battery life, cooling and maintenance to help you choose a cost-effective solution.
Need a 3 Phase UPS for Your Facility?
If you are planning a new installation, replacing an existing UPS or increasing your backup capacity, send us your basic requirement.
You can share your load details, equipment type, required backup time and electrical configuration.
Our technical team can review the requirement and help you determine the appropriate UPS capacity, phase arrangement and battery configuration.
Fill Your Contact Details
FAQ
A three-phase UPS is a backup power system designed to supply protected electrical loads in three-phase power environments. It is commonly used for industrial machinery, automation, data infrastructure and other critical applications.
Online double-conversion UPS systems are commonly considered for applications requiring controlled output power and continuity. Suitability depends on the actual load and operating environment.
Backup duration depends on the load and battery configuration. The required runtime should be specified when designing the system.
Some UPS systems support lithium-ion battery solutions. Compatibility, charging, monitoring and installation requirements must be checked for the specific system.
Yes. Regular inspection, system testing and battery assessment help maintain dependable operation.
Yes. You can share the equipment details, available electrical information or existing UPS details, and the requirement can be reviewed to determine what additional information is needed.
3P–3P means three-phase input and three-phase output. 3P–1P means three-phase input and single-phase output. The correct choice depends on the equipment and electrical distribution.
The capacity depends on the actual load, power factor, equipment characteristics, starting demand, required operating margin and future expansion. A technical assessment is preferable to selecting capacity from the nameplate alone.
Yes. UPS and generator systems can operate together when their electrical characteristics and transfer arrangements are properly coordinated.
Yes, where the selected UPS is compatible with the machine’s electrical characteristics and the protected load is correctly defined.

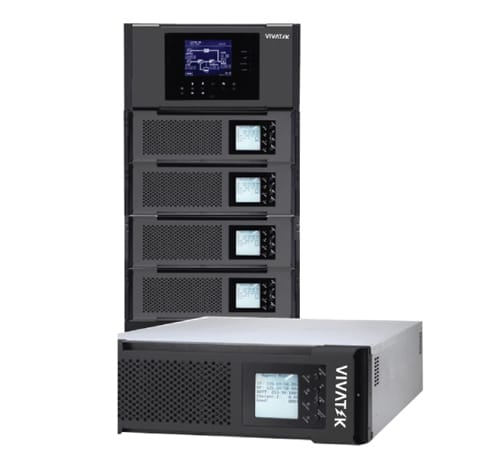

Some UPS architectures support additional capacity or parallel operation. If future expansion is expected, it should be considered during the initial design.
